Introducing PLX Devices' next generation wideband oxygen sensor controller with intelligent health monitoring technology and current for improved sensor performance. The new Gen4 Wideband AFR utilizes the next generation in Bosch Wideband Air/Fuel Ratio sensor technology. The Gen4 is faster, more accurate, more durable, and uses less power than the Gen3. The Gen4 also employs the innovative PLX Devices new intelligent health monitoring technology where the oxygen sensor is meticulously monitored every 2mS (488 times per second) to obtain peak performance, accuracy and reaction time. Pair the SM/AFR with the updated patented DM-6 touch screen MultiGauge, battery voltage is displayed from 9V-20V, sensor life is displayed from 0-100%. The oxygen sensor reaction time is displayed from 10mS/1000mS on the brilliant high contrast OLED display.

Pair with our SensorTap P4 for the ultimate Bluetooth Wideband experience!

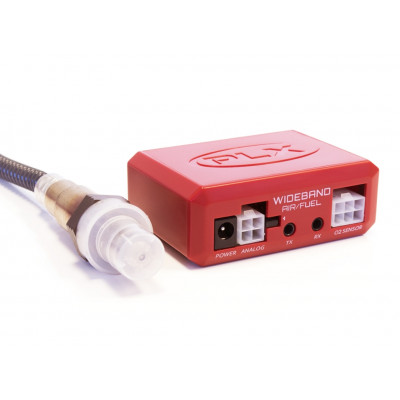

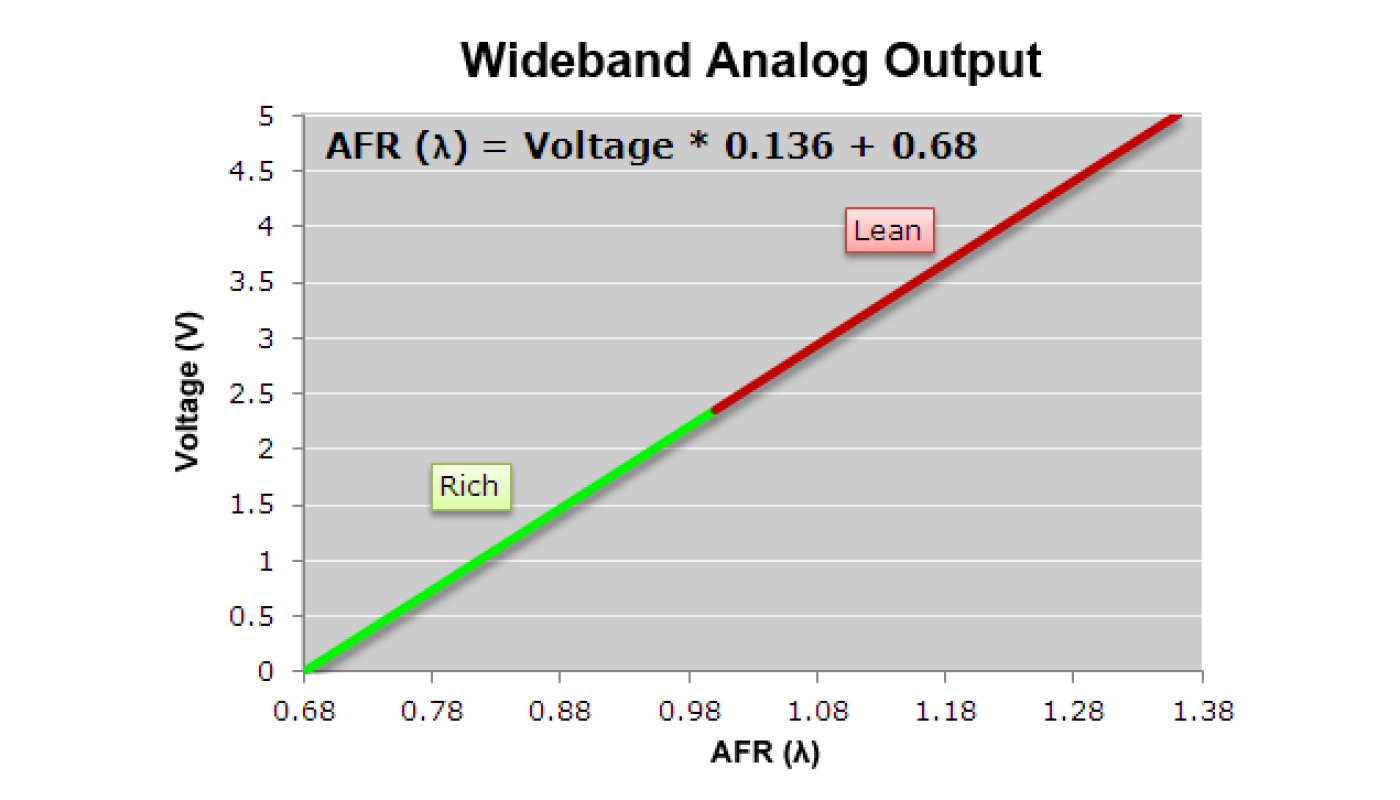

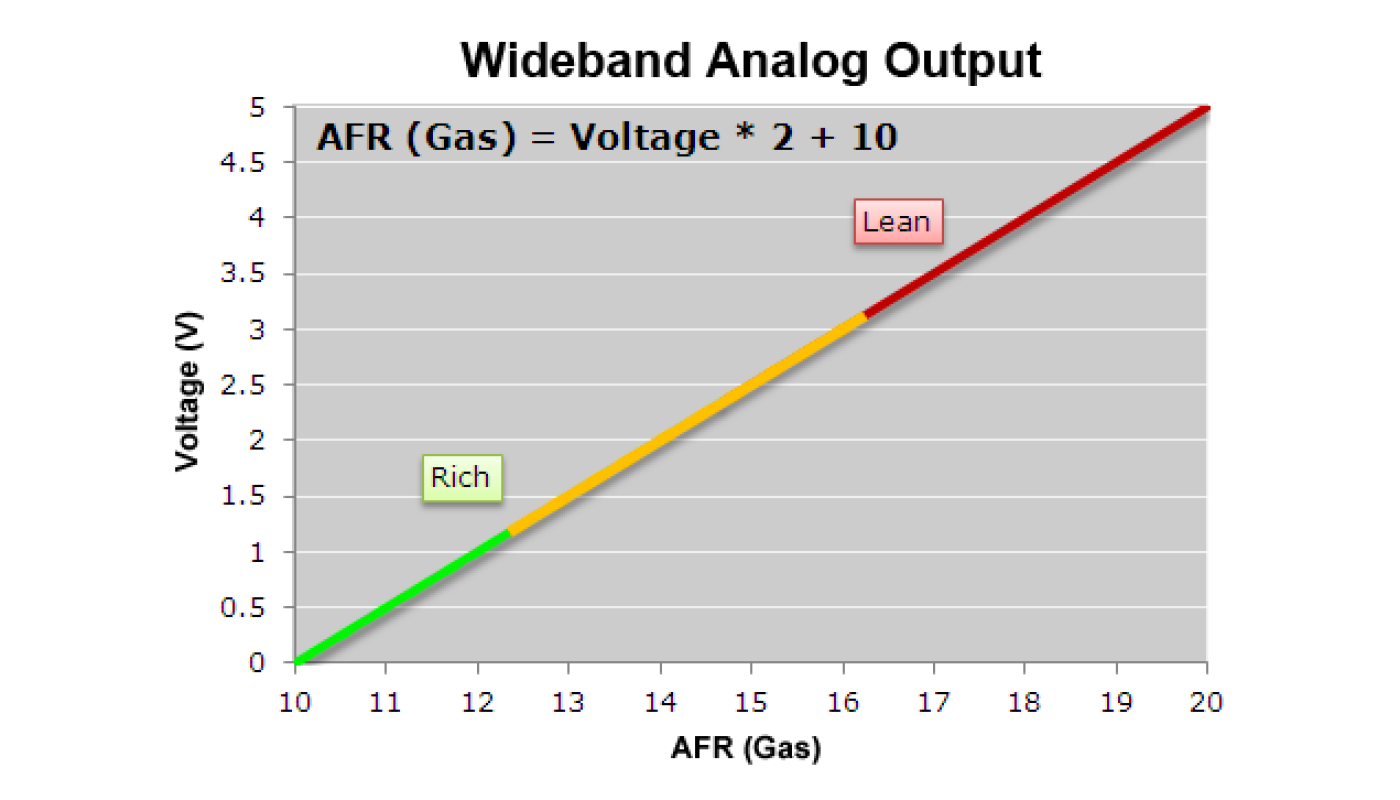

The PLX Wideband AFR (UEGO) combines an accurate, fast response wideband AFR (Air Fuel Ratio) controller with a Bosch LSU4.9 wideband oxygen sensor. The wideband controller (SM-AFR) works with gasoline, bio diesel, ethanol, methanol, E85, LPG, and CNG. It includes two analog outputs (wideband 0-5V, and narrowband 0-1V) for interfacing with 3rd party devices and one digital serial output for interfacing with the DM-6 gauge and other Multi Gauges. The wideband analog output is ideal for interfacing with aftermarket ECU's and data loggers. The narrowband output is ideal for stock narrowband oxygen sensor replacement where the simulated narrowband analog output is fed back into your ECU to make it operate as if the stock narrowband oxygen sensor is still installed while running the PLX wideband setup. All three outputs can be used simultaneously. Additional features include advanced soft start technology which prolongs the oxygen sensor's life.


  • Bosch LSU 4.9
  • O2 Sensor Health
  • O2 Sensor Reaction Time
  • No Calibration Required
  • Soft Start Technology
  • 2 Analog Outputs
  • 1 Digital Input, 1 Digital Output
  • Compatible with Multiple Fuels
  • Sensor is Hand-Tested

New with Gen4:

  • Higher Accuracy
  • Reduced Power Consumption (7.5 watts vs 10 watts)
  • Faster Response Time
  • Improved Sensor Durability
  • Faster Warm-up Time
  • Maintains Accuracy Throughout Life
  • 10+ Years Average Service Life

  • SM-AFR Sensor Module Main Unit

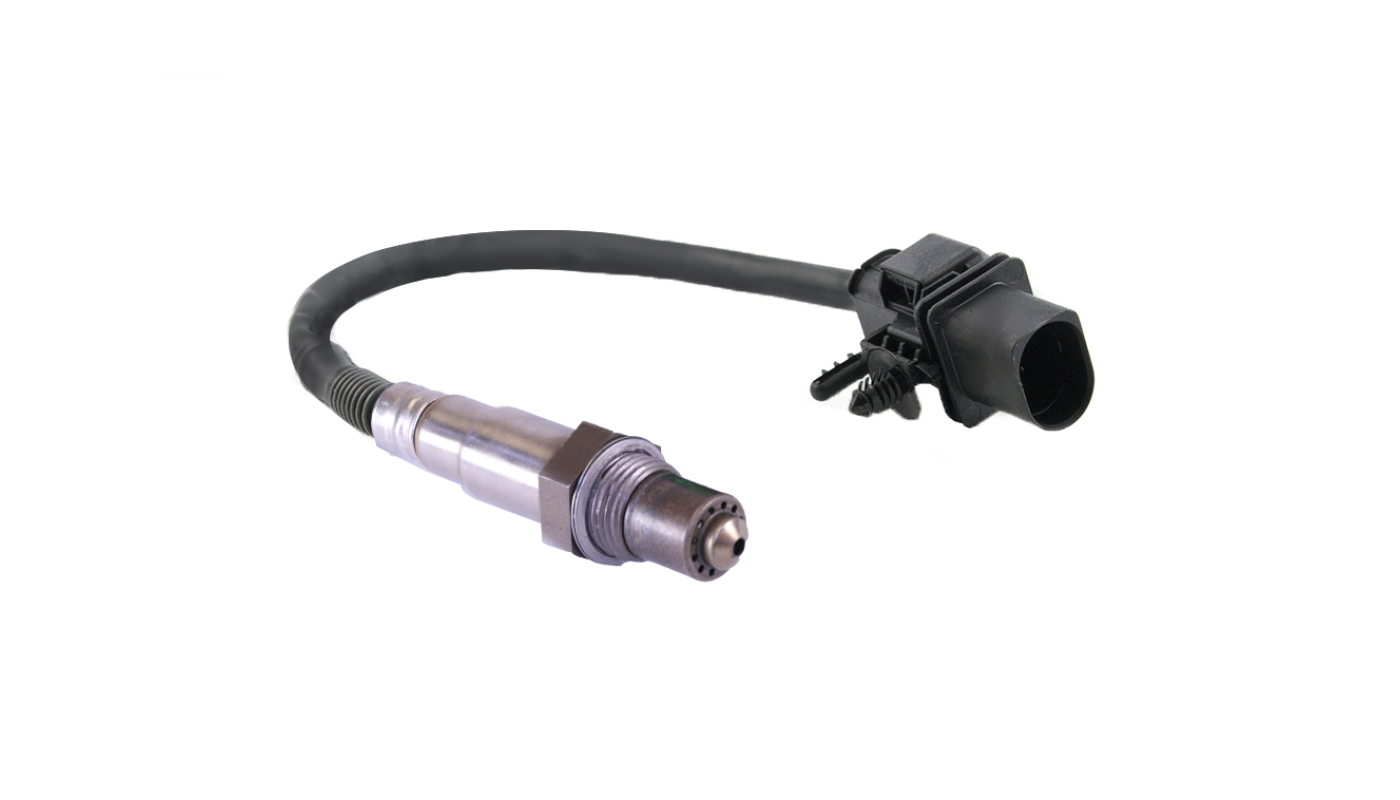

  • Bosch LSU 4.9 Wideband Sensor

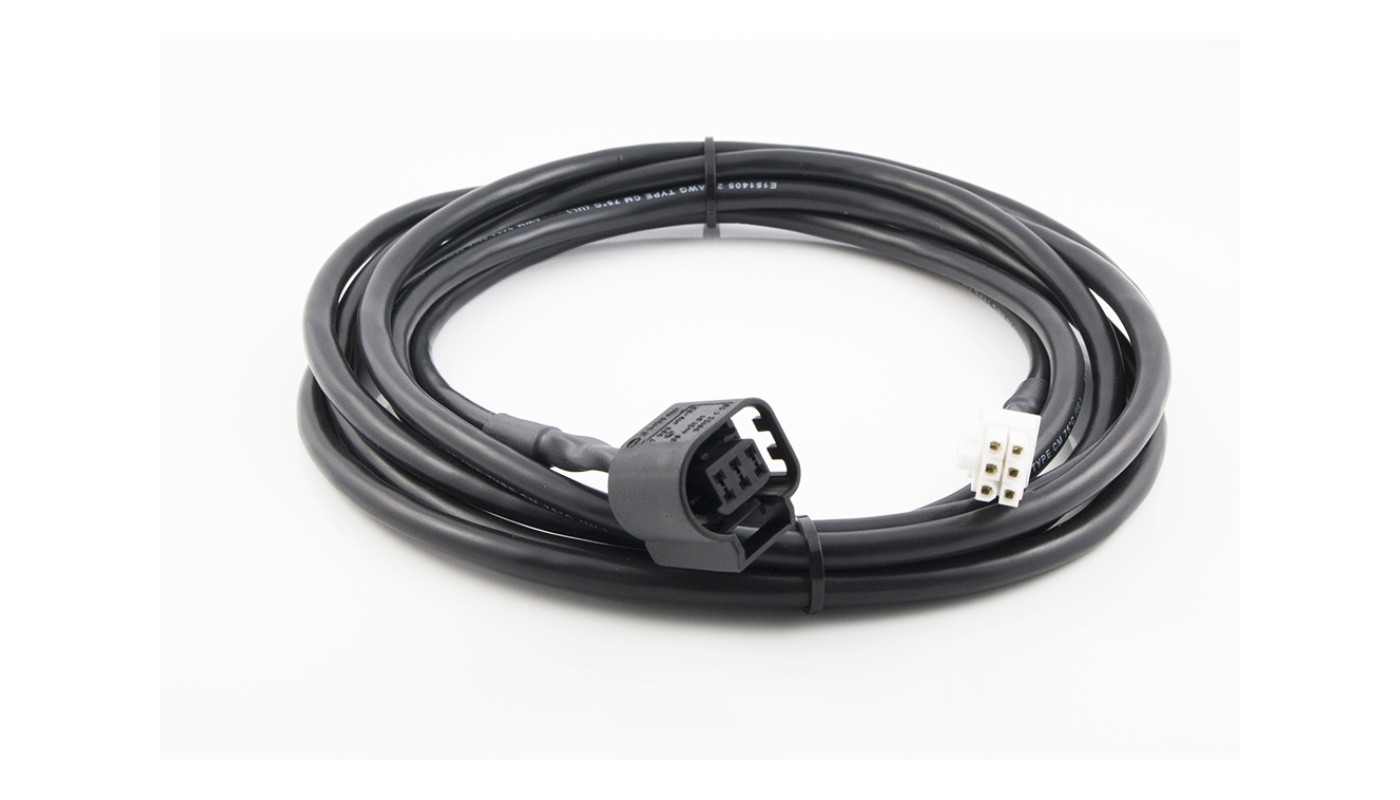

  • 10ft O2 Sensor Harness

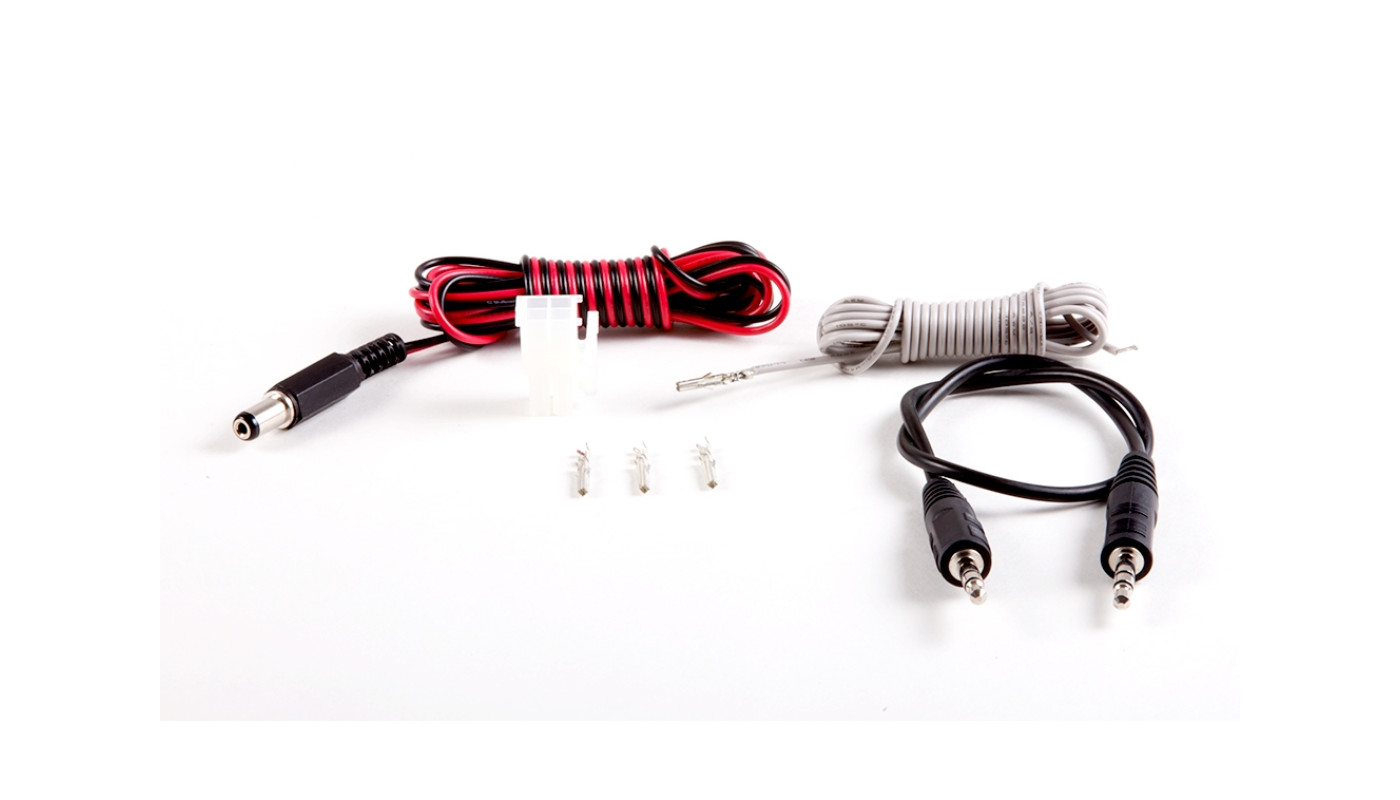

  • Sensor Module Connection Kit (4ft power wire with 2.1mm connector, 4ft analog wires and connector, 1ft serial cable, 4-pin connector for SM-AFR connectivity, 2 terminals for 4-pin connector)
  • Termination Jumper
  • User Manual

Write a review

Please login or register to review

PLX Devices SM-AFR Wideband Air/Fuel Sensor Module

  • Brand: PLX Devices
  • Product Code: SM-AFR
  • Availability: In Stock
  • $175.99
